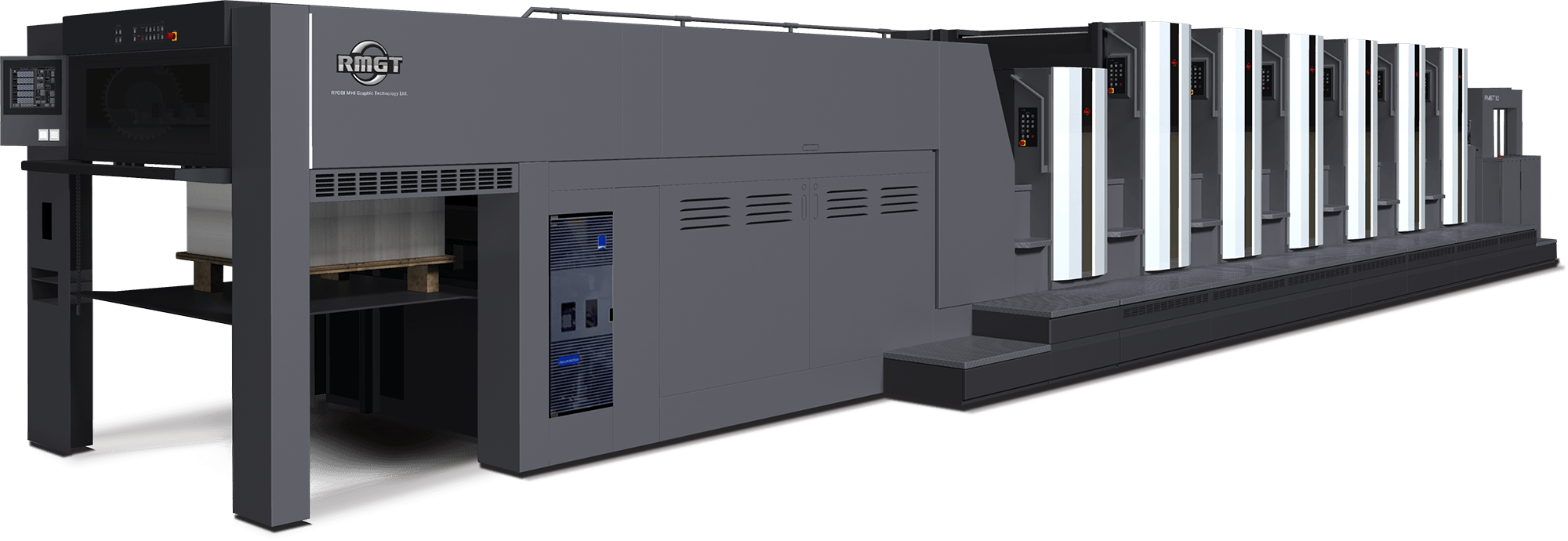

The RMGT 10-Series wide stock range press is an excellent choice for high-end multicolor projects requiring special colors, coatings or spot varnishes.
Print paper, plastic and board up to 0.039 inches thick with quality so high that it leaves customers coming back for more. Delivery skeleton cylinders and a host of features equip you for virtually any commercial or packaging challenge.
High-quality reproduction on plastics and synthetic paper open the door to higher-profit niches, such as restaurant menus, recipe books, maps and credit/gift cards.
The highly automated makeready process, including automated plate changing, various preset systems and automatic cleaning, greatly shortens makereadies. The innovative air management system floats sheets through the press without marking. Skeleton cylinders also prevent marking, warping and static problems when printing on plastics. The feeder section uses no brushes or rubber rollers, reducing labor and enhancing register accuracy.
| Maximum Printing Speed | 17,000 sheets per hour |
|---|---|
| Maximum Sheet Size | 29.13" x 40.16" (740 mm x 1,020 mm) |
| Minimum Sheet Size | 14.17" x 21.26" (360 mm x 540 mm) |
| Maximum Image Area | 28.74" x 40.16" (730 mm x 1,020 mm) |
| Sheet Thickness Range | 0.002" - 0.039" (0.04 mm - 1 mm) |
| Feeder Stacking Capacity | 43.7" (1,110 mm) |
| Delivery Stacking Capacity | 43.31" (1,100 mm) |
| Printing Unit Configurations | Up to 8 units |
Detect imperfected sheets fast with the Print Quality Control System (PQS-D) from RM Machinery. Available with every RMGT press, the PQS-D automatically monitors critical registration and density via a CCD camera and makes adjustments on the fly.
This simultaneous plate cylinder repositioning system targets the time-consuming plate-changing steps in press makereadies.
PCS-N, RMGT’s intelligent automated press control system, is a vital link in the digital chain.
Energy-conserving, long-life LED-UV curing system instantly dries printed sheets using light-emitting diodes.
