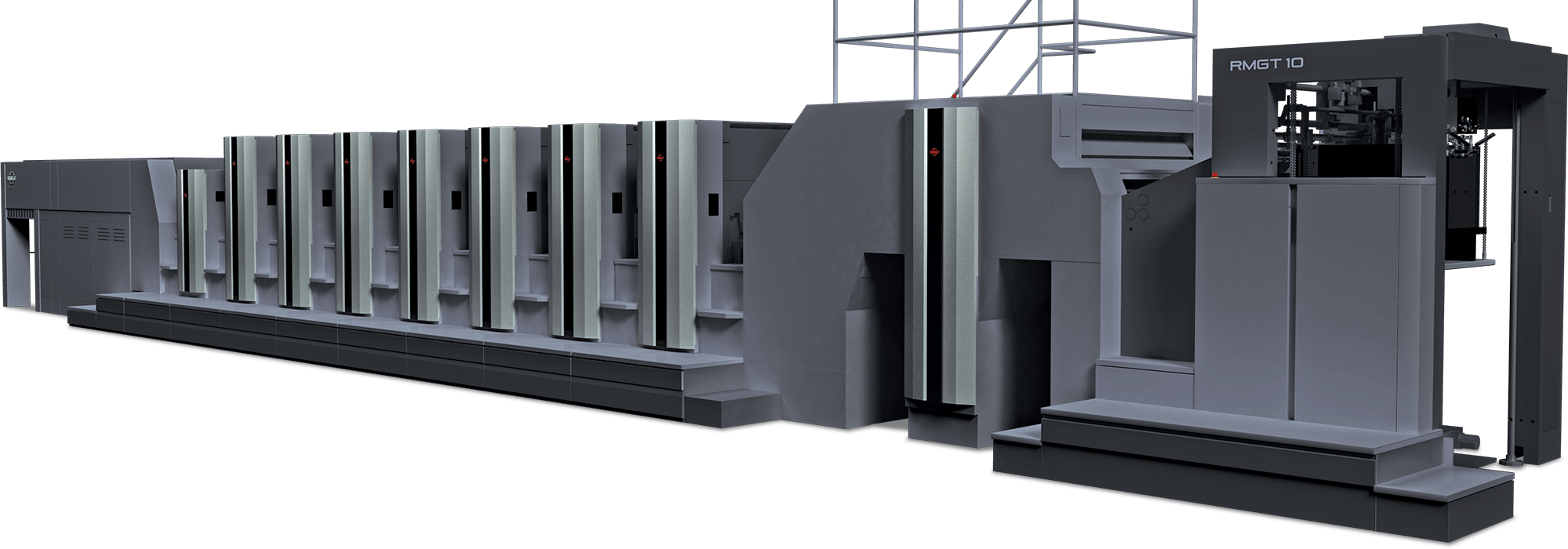

RMGT’s one-of-a-kind tandem perfector packaging press is tripling packaging printers’ success across the globe. With the 1060 TP LX 7/1 CC LD, packages are produced using the technology’s TransLink unit, a triple-diameter transfer system that passes printed sheets from the back side of the press to the front side without turning them over. With this technology, printers can achieve flawless unit-to-unit, side-to-side register and color matching without scratching the surface of the carton.
With automatic feeders, a raised kit, delivery shutters and the PQS-D (I+C+R) Print Quality Control System designed to keep work moving seamlessly from job to job without the need for a press operator to intervene, printers can count on the 1060 TP LX 7/1 CC LD to continually create the perfect package.
| Feeder Section |
|---|
| High speed feeder separator |
| Paper Size preset (separator Front/Back positioning by remote control) |
| Single suction belt type feeder board with Misalignment Prevention function |
| Foreign Substance stopper at feeder board |
| Sheet feeding speed slowdown device |
| Cover below feeder board with limit switch |
| Separator height and front air blast nozzle positioning by remote control |
| Expandable paper guide under separator |
| Electrostatic eliminator |
| Registration Section |
| Photo Electric type Double sheet detector |
| Ultra Sonic type Double sheet detector |
| Roller type paper retainer |
| Side lay preset |
| Torsion bar type swing gripper shaft |
| Front-lay circumferential and cocking register by remote control |
| Pneumatic pull side guide |
| Printing Unit |
| Plate U-Cuts Dimension(Depth): RMGT Standard 11mm |
| Plate U-Cuts Dimension(Lateral): RMGT Standard 780mm |
| Patented doubling prevention system |
| Plate clamp with fan-out adjustment device |
| Stainless steel metalized Plate and Blanket cylinder |
| Chrome plated Impression cylinder |
| Protection cover automatic Open/Close device |
| Bearer wiper |
| Automatic Impression Pressure preset with Plate and Blanket cylinders follow-up Mechanism |
| Torsion bar type gripper Shaft |
| Lubrication-Free grippers bearing |
| Gripper pad Casette type |
| Circumferential, Lateral and Cocking Register adjustment remote control |
| Safety bar between Plate and Blanket cylinder |
| Safety bar between Blanket cylinder and Ink form roller (W) |
| Safety bar between Blanket and Impression cylinder |
| ICP Film for transfer cylinder |
| Fixed sheet guide under transfer cylinder |
| Inking Unit |
| High Precision ink key remote control system (Auto preset inking system) |
| Automatic ink key Zero point adjustment system |
| Variable ink doctor timing remote control |
| Ink Fountain roller rotation remote control |
| Automatic ink roller cleaning device with ink Ductor Blade On/Off remote control |
| Dampening Section |
| On touch On/Off Nipping of DT and DR rollers |
| Water Fountain roller rotation Remote control |
| Water Rider roller (DS) with specialized chrome coating |
| Water Oscillating bridge roller (DB) |
| Multi-Mode dampening system |
| Delivery Section |
| Delivery Drumless cylinder |
| Torsion bar type shadowless chain gripper bar |
| Delivery Jam-up detector |
| Delivery pile thrusting detector |
| Sheet releasing remote control |
| Vaccum slowdown wheel Independent drive |
| Vacuum slowdown wheel |
| Sheet Decurler |
| Automatic lubrication for chain guide |
| Delivery pile automatic lowering |
| Paper Size preset (side Jogger Lateral positioning, Expandable side Jogger, Vacuum slow down wheel Front/Back position and vacuum slow down when suction width presetting) |
| Delivery Saftey area detector |
| Delivery air guide plate |
| Electrostatic eliminator |
| Stack aligner in delivery |
| Operation-Control Section |
| Sequential Start-Up |
| Emergency Impression off at feeder |
| Emergency Impression off at delivery |
| Sequential Impression On |
| Color touch screen at feeder |
| Presetting counter with feeder pump off function |
| High speed Impression On mechanism |
| Active / Satefy Mode Selector Switch (feeder to each unit) |
| Color touch Screen at delivery |
| Multi function Beam (LED) |
| RMGT - Intelligent Press Control |
| Translink |
| Solid type Double-Diameter cylinder Translink unit |
| Paper/Plate Size |
| Paper Thickness Range：0.04～0.6mm |
| Plate Thickness：0.3mm |
| Ink：LED-UV |
| Language：English |
| Safety Regulation：UL |
| The unit for Distance：mm |
| Plate Punch Dimension: RMGT Standard |
| Air Center |
| Second transfer cylinder at Translink unit：Vacuum type |
| Feeder-Registration Section |
| Nonstop Feeder：Automatic |
| Front-Lay Bernoulli |
| Automatic Central Greasing system for feeder board and Register by Cartridge |
| Corrective sheet detector with sheet Clamp device |
| Side-Lay detector：Fiber Sensor type |
| Brush and Rubber roller device (Single bar type) |
| Sheet Circumferential Direction Aligning device |
| Feeder belt Acceleration/Deceleration device: Chain type |
| Printing Unit |
| Simultaneous Full-Automatic Plate Changing system (Simulchanger FPC) 7 COLOR |
| High speed Impression：High speed Impression On (10,000Sph) and Zero Minute Standby of Impression Pressure preset 7 COLOR |
| Support bar for Blanket Change 1 COLOR |
| Automatic Blanket cleaning device：RMGT 7 COLOR |
| Automatic Impression cylinder cleaning device 6 COLOR |
| Inking Unit |
| Ink Clutch : 1st, 2nd, 7th & 8th Printing Units |
| Ink Fountain Roller Independent drive : All Printing Units 1 COLOR |
| Ink Oscillating rollers Dead point positioning remote control: All printing units 7 COLOR |
| Ink Oscillating roller On/Off remote control：All printing units 7 COLOR |
| Automatic cleaning Solvent spray for Oil Based Ink 7 COLOR |
| One Action On/Off Oscillating Ink form roller(W,Z)：All printing units 7 COLOR |
| Provision for Ink Oscillating roller Cooling(C1,K1 And K2)：All printing units 7 COLOR |
| Dampening Section |
| Dampening Oscillating roller (DR roller)：All printing units 7 COLOR |
| Delta type Dampening system：All printing units 7 COLOR |
| Delivery Section |
| Board Insertion guide Automatic Lowering device |
| Delivery Shutter |
| Long Delivery |
| Operation-Control Section |
| PPC Server III Software |
| Press Information Display |
| Special Sheet-for UV-Special Unit |
| Anti Electrostatic Measure：Grade 1 for paper |
| UV Printing 7 SET |
| Interdeck UV Provision_after PU3, PU5, PU7 and PU8 |
| Interdeck UV Provision_before Coating Unit |
| Coating unit |
| Machine Arrangement |
| Press Raise : 450mm |
| Feeder Band Stand：Feeder Band Stand without drive side steps |
| Flip-Up type pile Extraction : Operator side |
| Tray at drive side 7 SET |
| Cover for drive side under foot Step：Selected without Exhaust Fan 7 SET |
| Cover for Operation side foot Step 7 SET |
| Tool Box under Operation side foot Step |
| Air Gun @ Last printing unit Operation side under foot step and feeder |
| Power Supply：60Hz 220V without Transformer |
| Special Order Spec. |
| Chamber type doctor blade coating system with varnish circulator：Harris & Bruno (DUO) |
| Water Spray for BCD |
| Skeleton on the front side |
| PQS-D |
| Auxillary Equipment |
| Rollers - Chameleon X 8 sets + 1 Set Core |
| PPC Server Computer |
| Mitsubishi Remote Access Program |
| Ink Agitator |
| AGT Combi unit |
| X-Rite IntelliTrax Closed Loop Color Spectrophotometer |
| GEW 3 LED Interdeck + 3 CUV EOP |
| Pierry IR |
